OPzS - FLOODED TUBULAR SERIES
This series features a long service life for up to 18-20 years in continuous operation. Thanks to antimony-free alloys used this series uses low gassing. Space and room requirements are minimal. Easy to move, easy to install and ready for immediate use without further commissioning work.
OPzS Series VRLA batteries can be used for:
Telecommunications
Emergency lighting systems
Power stations
Alternate Power
Large UPS
Railway Signalling
OPzS - FLOODED TUBULAR SERIES - 2V
| Battery Model | Voltage (V) | Capacity (120hr) | Capacity (10hr) | Length (±3mm) | Width (±3mm) | Height (±3mm) | Total Height (±3mm) | Dry Weight (kg) | Wet Weight (kg) | Terminal Type | Design Life (Years) |
|---|---|---|---|---|---|---|---|---|---|---|---|

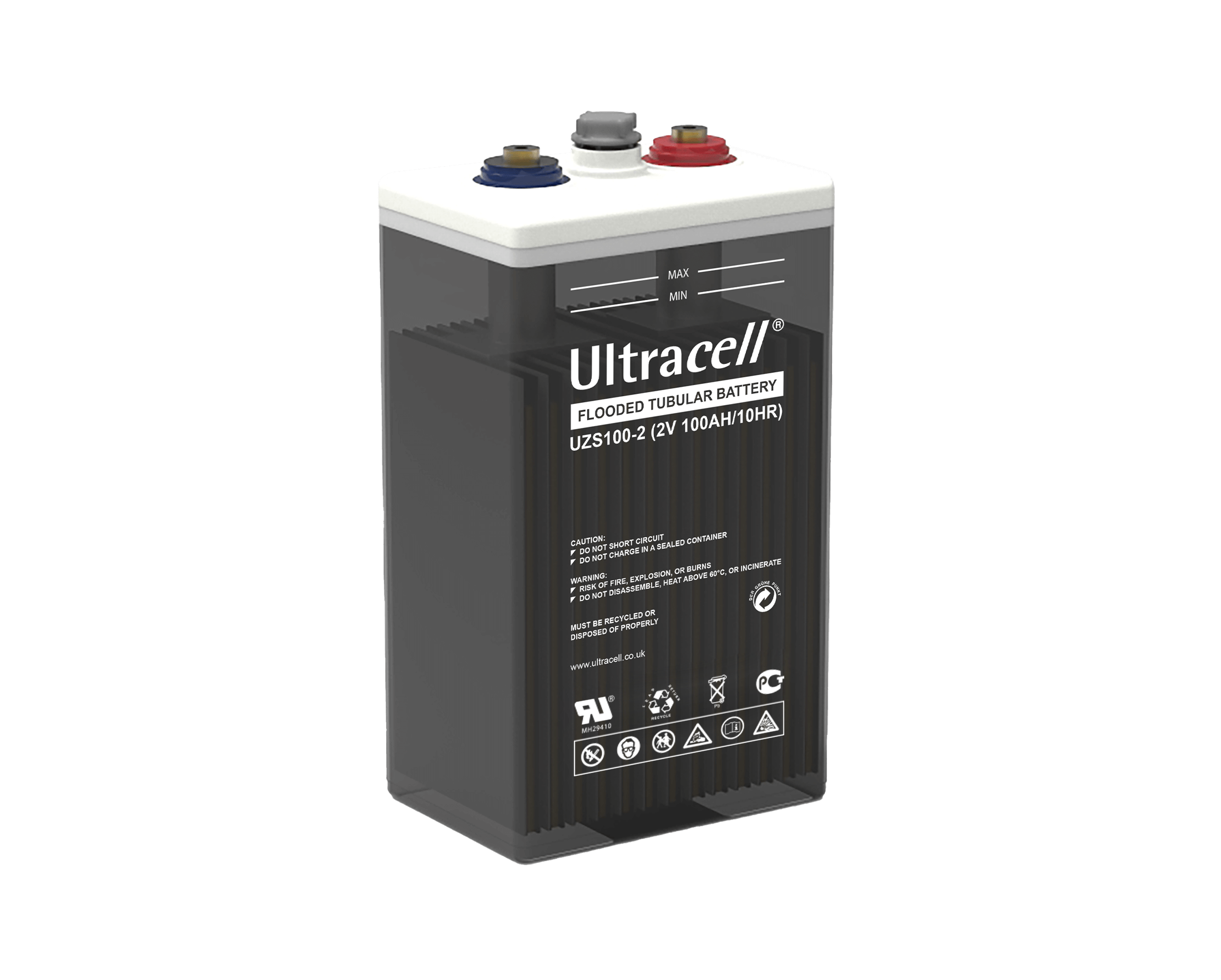

| UZS100-2 | 2 | - | 100.00 | 103.00 | 206.00 | 354.00 | 409.00 | 8.50 | 13.50 | F11 | 20 |
| UZS150-2 | 2 | - | 150.00 | 103.00 | 206.00 | 354.00 | 409.00 | 11.00 | 15.00 | F11 | 20 |
| UZS200-2 | 2 | - | 200.00 | 103.00 | 206.00 | 354.00 | 409.00 | 13.50 | 17.50 | F11 | 20 |
| UZS250-2 | 2 | - | 250.00 | 124.00 | 206.00 | 354.00 | 409.00 | 16.00 | 21.00 | F11 | 20 |
| UZS300-2 | 2 | - | 300.00 | 145.00 | 206.00 | 354.00 | 409.00 | 18.50 | 24.50 | F11 | 20 |
| UZS350-2 | 2 | - | 350.00 | 124.00 | 206.00 | 471.00 | 525.00 | 20.00 | 26.50 | F11 | 20 |
| UZS420-2 | 2 | - | 420.00 | 206.00 | 145.00 | 470.00 | 525.00 | 24.50 | 33.00 | F11 | 20 |
| UZS500-2 | 2 | - | 500.00 | 165.00 | 206.00 | 470.00 | 525.00 | 26.00 | 36.00 | F11 | 20 |
| UZS600-2 | 2 | - | 600.00 | 145.00 | 206.00 | 645.00 | 700.00 | 31.00 | 43.00 | F11 | 20 |
| UZS770-2 | 2 | - | 770.00 | 253.00 | 210.00 | 472.00 | 527.00 | 42.50 | 57.50 | F11 | 20 |
| UZS800-2 | 2 | - | 800.00 | 191.00 | 210.00 | 645.00 | 700.00 | 42.00 | 58.00 | F11 | 20 |
| UZS900-2 | 2 | - | 900.00 | 191.00 | 210.00 | 646.00 | 700.00 | 46.80 | 62.00 | F11 | 20 |
| UZS1000-2 | 2 | - | 1000.00 | 233.00 | 210.00 | 645.00 | 700.00 | 52.00 | 72.00 | F11 | 20 |
| UZS1200-2 | 2 | - | 1200.00 | 275.00 | 210.00 | 645.00 | 700.00 | 62.00 | 86.00 | F11 | 20 |
| UZS1300-2 | 2 | - | 1300.00 | 275.00 | 210.00 | 646.00 | 701.00 | 63.00 | 88.00 | F11 | 20 |
| UZS1500-2 | 2 | - | 1500.00 | 275.00 | 210.00 | 795.00 | 850.00 | 75.00 | 105.00 | F11 | 20 |
| UZS1600-2 | 2 | 2240.00 | 1600.00 | 210.00 | 275.00 | 795.00 | 851.00 | 78.00 | 110.00 | F11 | 20 |
| UZS1700-2 | 2 | 2380.00 | 1700.00 | 210.00 | 275.00 | 796.00 | 851.00 | 78.00 | 110.00 | F11 | 20 |
| UZS2000-2 | 2 | - | 2000.00 | 210.00 | 399.00 | 771.00 | 826.00 | 108.00 | 150.00 | F11 | 20 |
| UZS2100-2 | 2 | 2940.00 | 2100.00 | 210.00 | 399.00 | 771.00 | 826.00 | 113.00 | 155.00 | F11 | 20 |
| UZS2500-2 | 2 | - | 2500.00 | 212.00 | 487.00 | 771.00 | 826.00 | 130.00 | 183.00 | F11 | 20 |
| UZS3000-2 | 2 | - | 3000.00 | 212.00 | 576.00 | 771.00 | 826.00 | 157.00 | 220.00 | F11 | 20 |
| UZS3500-2 | 2 | - | 3500.00 | 212.00 | 576.00 | 772.00 | 827.00 | 178.00 | 246.00 | F11 | 20 |
OPzS - FLOODED TUBULAR SERIES - 6V
| Battery Model | Voltage (V) | Capacity (120hr) | Capacity (10hr) | Length (±3mm) | Width (±3mm) | Height (±3mm) | Total Height (±3mm) | Dry Weight (kg) | Wet Weight (kg) | Terminal Type | Design Life (Years) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| UZS80-6 | 6 | - | 80.00 | 194.00 | 170.00 | 205.00 | 205.00 | 12.20 | 16.50 | - | 20 |
| UZS100-6 | 6 | - | 100.00 | 260.00 | 180.00 | 245.00 | 254.00 | 13.60 | 19.00 | - | 20 |
| UZS120-6 | 6 | - | 120.00 | 260.00 | 180.00 | 235.00 | 250.00 | 15.50 | 22.00 | - | 20 |
| UZS140-6 | 6 | - | 140.00 | 243.00 | 187.00 | 253.00 | 276.00 | 18.70 | 27.00 | - | 20 |
| UZS160-6 | 6 | - | 160.00 | 307.00 | 169.00 | 220.00 | 225.00 | 18.50 | 28.00 | - | 20 |
| UZS180-6 | 6 | - | 180.00 | 295.00 | 178.00 | 330.00 | 348.00 | 24.00 | 34.00 | - | 20 |
| UZS200-6 | 6 | - | 200.00 | 295.00 | 178.00 | 345.00 | 345.00 | 27.00 | 36.00 | - | 20 |
| UZS250-6 | 6 | - | 250.00 | 295.00 | 178.00 | 345.00 | 345.00 | 29.50 | 40.50 | - | 20 |
| UZS300-6 | 6 | - | 300.00 | 295.00 | 178.00 | 405.00 | 405.00 | 35.50 | 54.00 | - | 20 |
| UZS600-6 | 6 | 600.00 | - | 295.00 | 178.00 | 405.00 | 408.00 | 32.50 | 51.00 | - | 20 |
OPzS - FLOODED TUBULAR SERIES - 12V
| Battery Model | Voltage (V) | Capacity (120hr) | Capacity (10hr) | Length (±3mm) | Width (±3mm) | Height (±3mm) | Total Height (±3mm) | Dry Weight (kg) | Wet Weight (kg) | Terminal Type | Design Life (Years) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| UZS20-12 | 12 | - | 20.00 | 197.00 | 165.00 | 155.00 | 169.00 | 8.50 | 13.00 | - | 20 |
| UZS30-12 | 12 | - | 30.00 | 197.00 | 165.00 | 157.00 | 157.00 | 10.00 | 12.80 | - | 20 |
| UZS40-12 | 12 | - | 40.00 | 260.00 | 170.00 | 201.00 | 215.00 | 13.20 | 19.00 | - | 20 |
| UZS60-12 | 12 | - | 60.00 | 260.00 | 170.00 | 201.00 | 215.00 | 16.50 | 23.50 | - | 20 |
| UZ80-12 | 12 | - | 80.00 | 330.00 | 171.00 | 217.00 | 235.00 | 18.00 | 27.00 | - | 20 |
| UZS100-12 | 12 | - | 100.00 | 409.00 | 176.00 | 205.00 | 225.00 | 27.00 | 34.50 | - | 20 |
| UZS120-12 | 12 | - | 120.00 | 485.00 | 172.00 | 220.00 | 240.00 | 29.40 | 42.50 | - | 20 |
| UZS140-12 | 12 | - | 140.00 | 532.00 | 207.00 | 204.00 | 224.00 | 35.50 | 53.00 | - | 20 |
| UZS160-12 | 12 | - | 160.00 | 522.00 | 238.00 | 203.00 | 221.00 | 42.50 | 60.50 | - | 20 |
| UZS180-12 | 12 | - | 180.00 | 522.00 | 238.00 | 203.00 | 221.00 | 42.50 | 65.00 | - | 20 |
| UZS200-12 | 12 | - | 200.00 | 521.00 | 269.00 | 203.00 | 223.00 | 50.00 | 73.00 | - | 20 |
