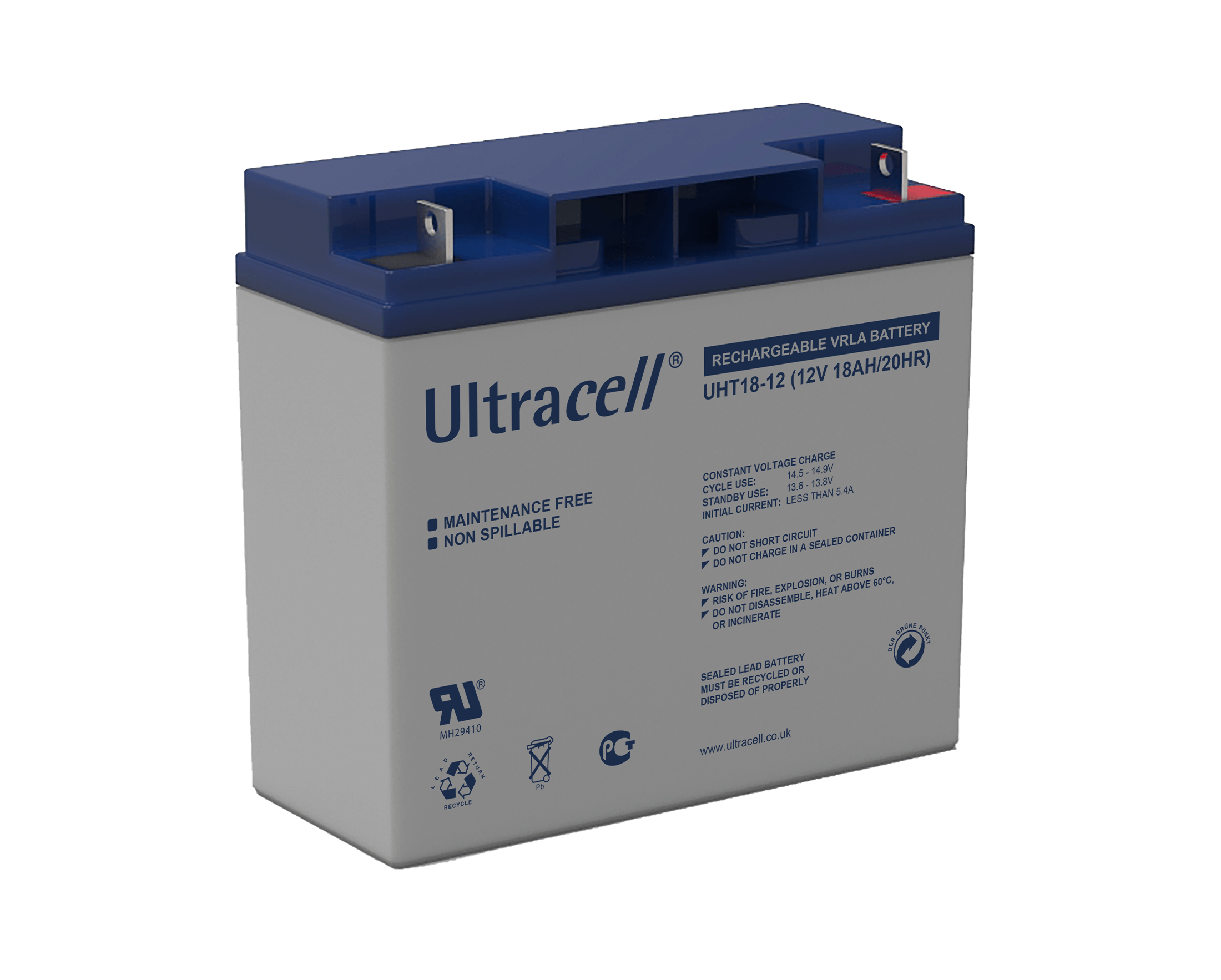

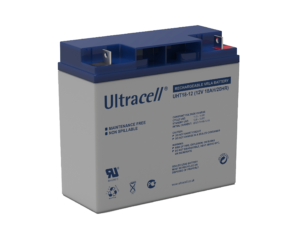

UHT - HIGH TEMPERATURE SERIES
The operating temperature of our UHT range battery is -40~+80°C . With a special electrolyte formula and new additive, the battery has less water loss at high temperature and has a longer service life.
The high performance separator has high tensile strength, being more reliable at high temperature and avoids short circuit effectively.
UHT Series VRLA batteries can be used for:
Telecommunication base station
High temperature station without air conditioning
Electric power system
Solar energy
Wind saving energy power supply
Which voltage would you like to view?
UHT - HIGH TEMPERATURE SERIES - 12V
| Battery Model | Voltage (V) | Capacity (20hr) | Capacity (10hr) | Length (±3mm) | Width (±3mm) | Height (±3mm) | Total Height (±3mm) | Weight (kg) | Terminal Type | Design Life (Years) |
|---|---|---|---|---|---|---|---|---|---|---|
| UHT7-12 | 12 | 7.00 | 6.60 | 151.00 | 65.00 | 93.50 | 99.00 | 2.45 | F2 | 7 |
| UHT12-12 | 12 | 12.00 | - | 151.00 | 98.00 | 95.00 | 101.00 | 3.60 | F2 | 7 |
| UHT18-12 | 12 | 16.70 | - | 181.00 | 77.00 | 167.00 | 167.00 | 5.45 | F3 | 7 |
| UHT24-12 | 12 | 24.00 | - | 166.00 | 175.00 | 125.00 | 125.00 | 7.90 | F3 | 7 |
| UHT100-12 | 12 | - | 100.00 | 330.00 | 171.00 | 214.00 | 224.00 | 32.0 | F6 | 12 |
