UXL - LONG LIFE SERIES
A special grid alloy and high purity raw material ensure less gassing and less self-discharging which means less chance of your battery losing capacity quickly.
Thicker plates have been used on this series to extend battery life. Lower acid density keeps the battery at a lower temperature and slows down the production of corrosion. The unique design of this series means its vent can control water loss and prevent air from going inside.
UXL Series VRLA batteries can be used for:
UPS
Railway signal and aircraft signal system
Marine Power Stations
Security Systems
Electronic Apparatus and equipment
UXL - LONG LIFE SERIES - 2V
| Battery Model | Voltage (V) | Capacity (20hr) | Capacity (10hr) | Length (±3mm) | Width (±3mm) | Height (±3mm) | Total Height (±3mm) | Weight (kg) | Terminal Type | Design Life (Years) |
|---|---|---|---|---|---|---|---|---|---|---|
| UXL100-2 | 2 | 106.80 | 100.00 | 170.00 | 72.00 | 205.00 | 214.00 | 5.90 | F6 | 20 |
| UXL150-2 | 2 | 160.00 | 150.00 | 170.00 | 98.00 | 205.00 | 214.00 | 8.50 | F7 | 20 |
| UXL200-2 | 2 | 214.00 | 200.00 | 170.00 | 110.00 | 328.00 | 350.00 | 13.70 | F11 | 20 |
| UXL250-2 | 2 | 266.00 | 250.00 | 170.00 | 110.00 | 328.00 | 350.00 | 14.50 | F11 | 20 |
| UXL300-2 | 2 | 320.00 | 300.00 | 170.00 | 150.00 | 328.00 | 350.00 | 18.80 | F11 | 20 |
| UXL450-2 | 2 | 480.00 | 450.00 | 210.00 | 175.00 | 330.00 | 350.00 | 26.30 | F11 | 20 |
| UXL500-2 | 2 | 534.00 | 500.00 | 175.00 | 240.00 | 327.50 | 347.50 | 30.50 | F11 | 20 |
| UXL600-2 | 2 | 640.00 | 600.00 | 175.00 | 300.00 | 330.00 | 350.00 | 36.20 | F11 | 20 |
| UXL800-2 | 2 | 854.00 | 800.00 | 175.00 | 410.00 | 330.00 | 350.00 | 51.00 | F11 | 20 |
| UXL1000-2 | 2 | 1068.00 | 1000.00 | 175.00 | 475.00 | 328.00 | 350.00 | 58.00 | F11 | 20 |
| UXL1200-2 | 2 | 1280.00 | 1200.00 | 175.00 | 475.00 | 328.00 | 350.00 | 65.80 | F11 | 20 |
| UXL1500-2 | 2 | 1600.00 | 1500.00 | 403.00 | 354.00 | 339.00 | 349.00 | 97.80 | F11 | 20 |
| UXL1800-2 | 2 | 1890.00 | 1800.00 | 403.00 | 354.00 | 339.00 | 349.00 | 101.00 | F11 | 20 |
| UXL2000-2 | 2 | 2134.00 | 2000.00 | 490.00 | 350.00 | 339.00 | 349.00 | 121.00 | F11 | 20 |
| UXL3000-2 | 2 | 3202.00 | 3000.00 | 709.00 | 350.00 | 337.00 | 347.00 | 180.00 | F11 | 20 |
UXL - LONG LIFE SERIES - 6V
| Battery Model | Voltage (V) | Capacity (20hr) | Capacity (10hr) | Length (±3mm) | Width (±3mm) | Height (±3mm) | Total Height (±3mm) | Weight (kg) | Terminal Type | Design Life (Years) |
|---|---|---|---|---|---|---|---|---|---|---|
| UXL6.5-6 | 6 | 6.50 | 6.46 | 151.00 | 34.00 | 94.00 | 100.00 | 1.26 | F1/F2 | 12 |
| UXL9-6 | 6 | 9.00 | 8.95 | 151.00 | 51.00 | 94.00 | 100.00 | 1.70 | F1/F2 | 12 |
| UXL11-6 | 6 | 11.00 | 10.90 | 151.00 | 51.00 | 94.00 | 100.00 | 1.95 | F1/F2 | 12 |
| UXL18-6 | 6 | 18.00 | 17.90 | 157.00 | 83.00 | 125.00 | 125.00 | 3.21 | F3 | 12 |
| UXL150-6 | 6 | 150.00 | 131.00 | 260.00 | 180.00 | 245.00 | 250.00 | 23.50 | F7 | 12 |
| UXL200-6 | 6 | - - - | 200.00 | 307.00 | 169.00 | 222.00 | 225.00 | 31.00 | F11 | 12 |
UXL - LONG LIFE SERIES - 12V
| Battery Model | Voltage (V) | Capacity (20hr) | Capacity (10hr) | Length (±3mm) | Width (±3mm) | Height (±3mm) | Total Height (±3mm) | Weight (kg) | Terminal Type | Design Life (Years) |
|---|---|---|---|---|---|---|---|---|---|---|
| UXL4.5-12 | 12 | 4.50 | 4.47 | 151.00 | 53.00 | 93.00 | 99.00 | 1.50 | F1/F2 | 12 |
| UXL7-12 | 12 | 7.00 | 6.92 | 151.00 | 65.00 | 93.50 | 99.00 | 2.15 | F1/F2 | 12 |
| UXL7.2-12 | 12 | 7.20 | 6.70 | 151.00 | 65.00 | 93.50 | 99.00 | 2.35 | F1/F2 | 12 |
| UXL9-12 | 12 | 9.00 | 8.51 | 151.00 | 65.00 | 93.50 | 99.00 | 2.45 | F2/F1 | 12 |
| UXL12-12 | 12 | 12.00 | 11.60 | 151.00 | 98.00 | 95.00 | 101.00 | 3.50 | F1/F2 | 12 |

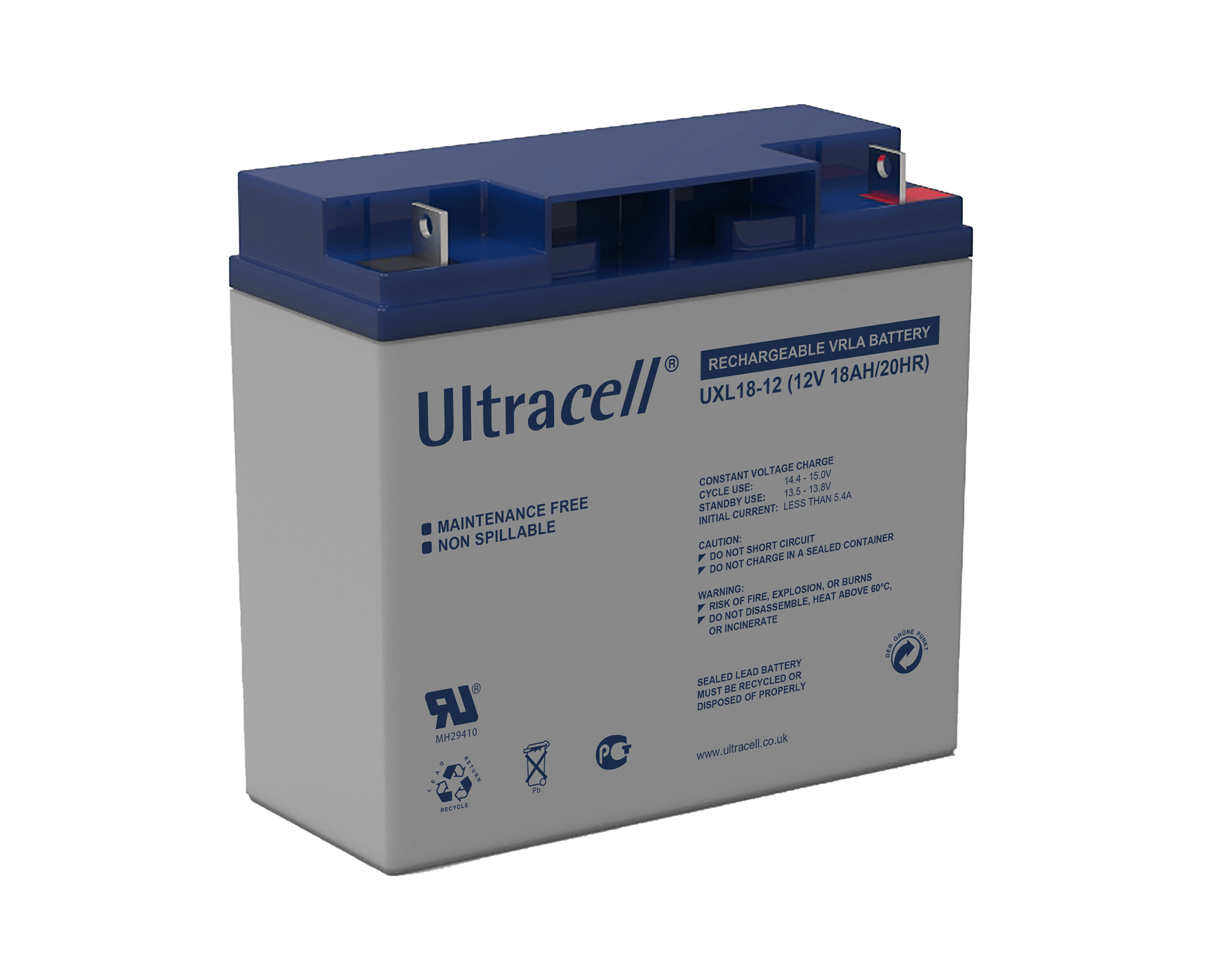

| UXL18-12 | 12 | 18.00 | 17.10 | 181.50 | 77.00 | 167.50 | 167.50 | 5.70 | F3/F12 | 12 |
| UXL22-12 | 12 | 22.00 | 18.90 | 181.50 | 76.50 | 167.50 | 167.50 | 5.90 | F12/F3 | 12 |
| UXL24-12 | 12 | 24.00 | 23.80 | 166.00 | 175.00 | 125.00 | 125.00 | 7.80 | F3/F12 | 12 |
| UXL26-12 | 12 | 26.00 | 25.80 | 166.00 | 175.00 | 125.00 | 125.00 | 8.00 | F3/F12 | 12 |
| UXL28-12 | 12 | 28.00 | 26.30 | 164.00 | 125.00 | 175.00 | 175.00 | 9.10 | F3/F10/F12 | 12 |
| UXL38-12 | 12 | 40.00 | 38.00 | 197.00 | 165.00 | 170.00 | 170.00 | 12.50 | F6/F10/F12 | 12 |
| UXL40-12 | 12 | 42.00 | 40.00 | 197.00 | 165.00 | 170.00 | 170.00 | 13.00 | F6 | 12 |
| UXL45-12 | 12 | 45.00 | 42.00 | 197.00 | 165.00 | 170.00 | 170.00 | 14.50 | F6 | 12 |
| UXL55-12 | 12 | 59.00 | 55.00 | 228.00 | 137.00 | 210.00 | 230.00 | 17.00 | F6/F9 | 12 |
| UXL60-12 | 12 | 63.60 | 60.00 | 260.00 | 168.00 | 210.00 | 216.00 | 19.20 | F6 | 12 |
| UXL65-12 | 12 | 68.20 | 65.00 | 348.00 | 167.00 | 178.00 | 178.00 | 20.50 | F6 | 12 |
| UXL70-12 | 12 | 75.00 | 70.00 | 348.00 | 167.00 | 178.00 | 178.00 | 21.50 | F6 | 12 |
| UXL75-12 | 12 | 78.00 | 75.00 | 260.00 | 168.00 | 208.00 | 214.00 | 22.90 | F6 | 12 |
| UXL80-12 | 12 | 84.00 | 80.00 | 260.00 | 168.00 | 208.00 | 214.00 | 23.50 | F6 | 12 |
| UXL90-12 | 12 | 95.40 | 90.00 | 306.00 | 168.00 | 208.00 | 214.00 | 27.10 | F6 | 12 |
| UXL100-12 | 12 | 107.00 | 100.00 | 330.00 | 173.00 | 212.00 | 220.00 | 30.60 | F11 | 12 |
| UXL120-12 | 12 | 132.20 | 120.00 | 410.00 | 177.00 | 225.00 | 225.00 | 36.60 | F11 | 12 |
| UXL135-12 | 12 | 140.80 | 134.00 | 345.00 | 172.00 | 274.00 | 280.00 | 41.40 | F11 | 12 |
| UXL150-12 | 12 | 160.60 | 150.00 | 485.00 | 170.00 | 240.00 | 240.00 | 43.00 | F11 | 12 |
| UXL200-12 | 12 | 214.00 | 200.00 | 522.00 | 240.00 | 218.00 | 224.00 | 62.00 | F11 | 12 |
| UXL250-12 | 12 | 268.00 | 250.00 | 522.00 | 268.00 | 220.00 | 226.00 | 73.00 | F11 | 12 |
